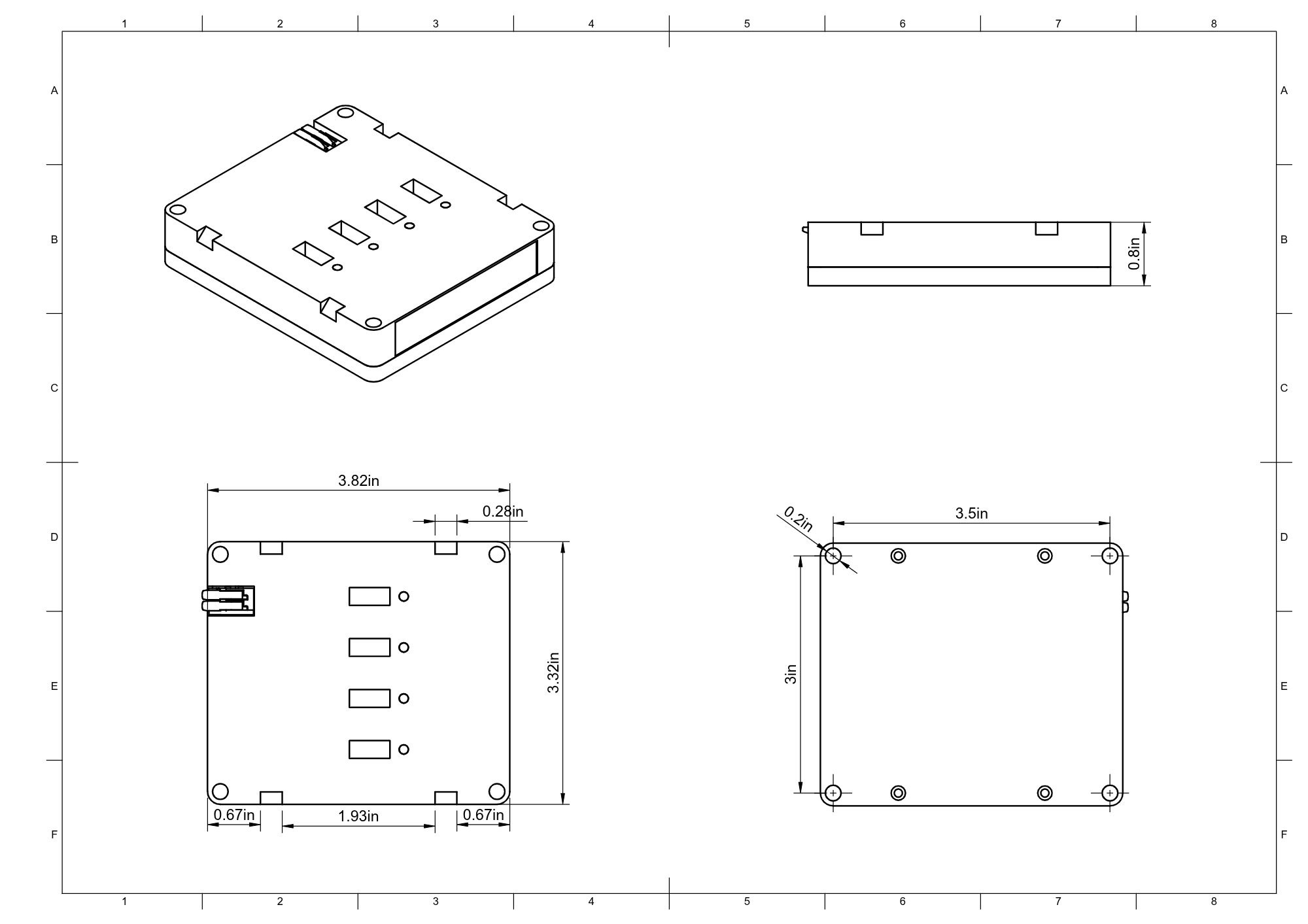

LumaSwitch Overview¶
Five port passive PoE ethernet switch built specifically for the needs of FRC robots.
Hardware Specs¶
- Same reliable buck-boost power stage of Luma P1
- 3.3V - 22.5V Input range
- Reverse polarity protection
- WAGO 2601 power input
- Five port 10/100 unmanaged switch
- 4X ports with optional unregulated PoE output
- Each port individually protected with a fuse
- LED indicator when PoE is active
- Remove fuse to disable PoE
- Versatile mounting
- 10 through holes on 0.5" pitch
- Zip-tie notches
- Lightweight, less than 0.25lb with fuses installed
